NEXIO N501

NEXIO N501

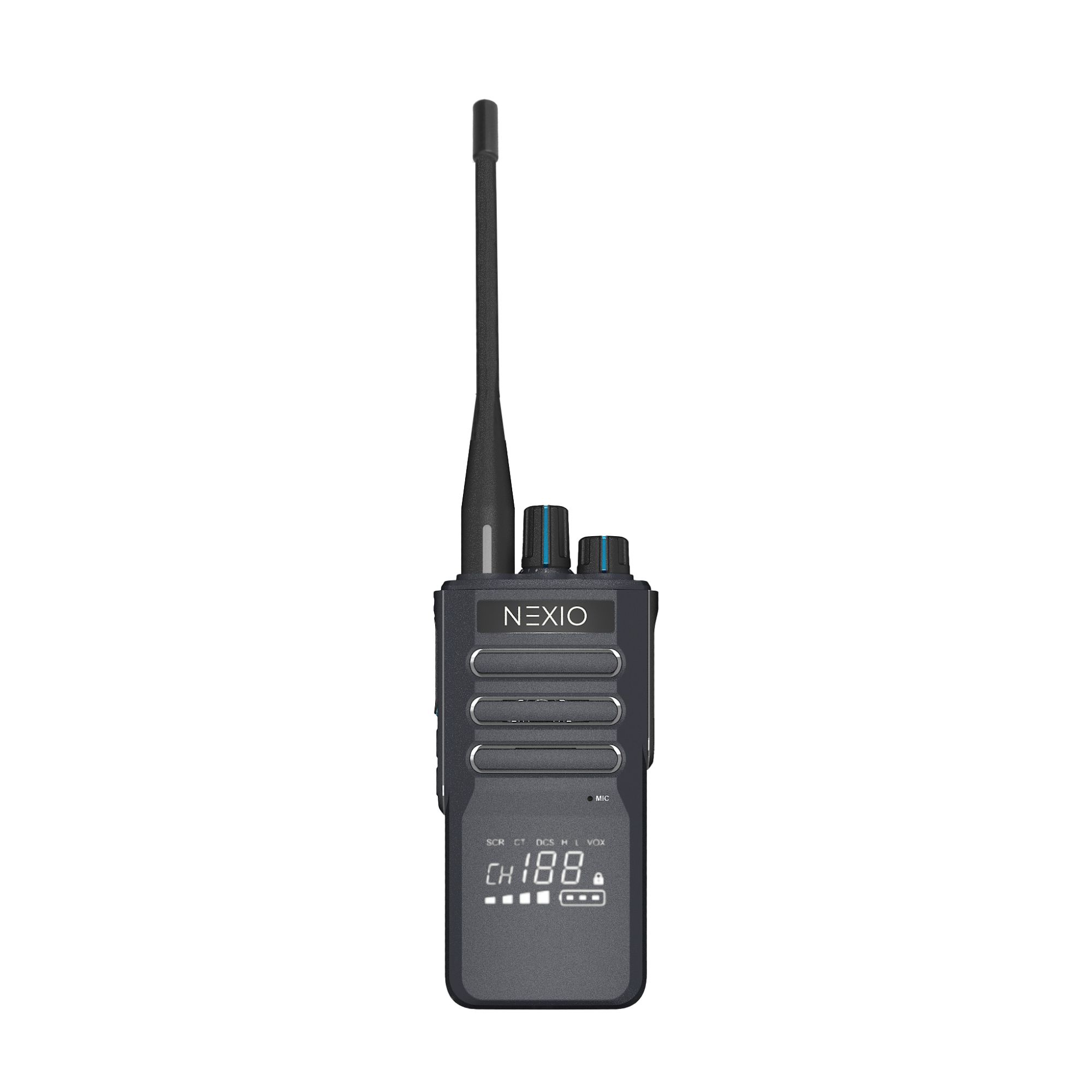

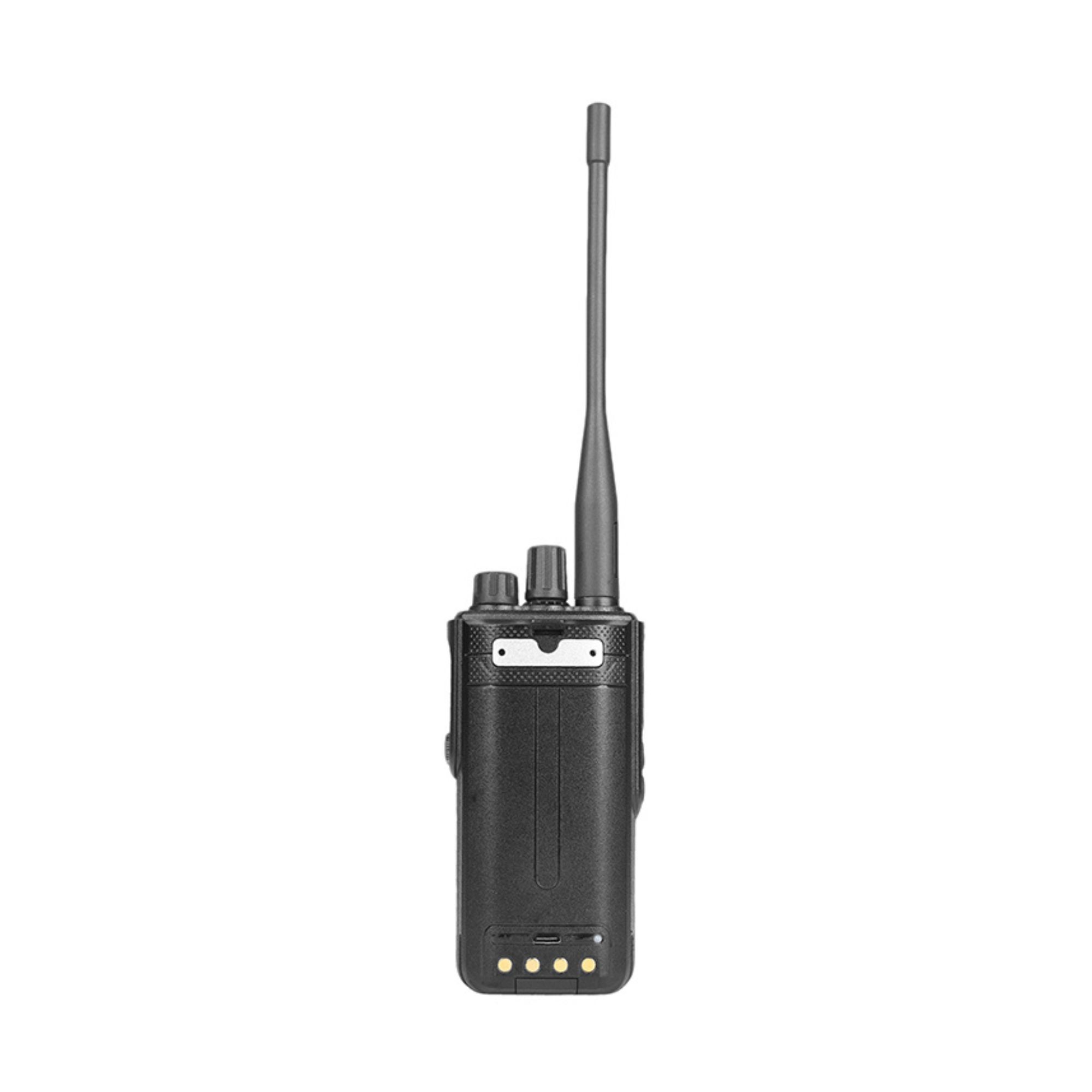

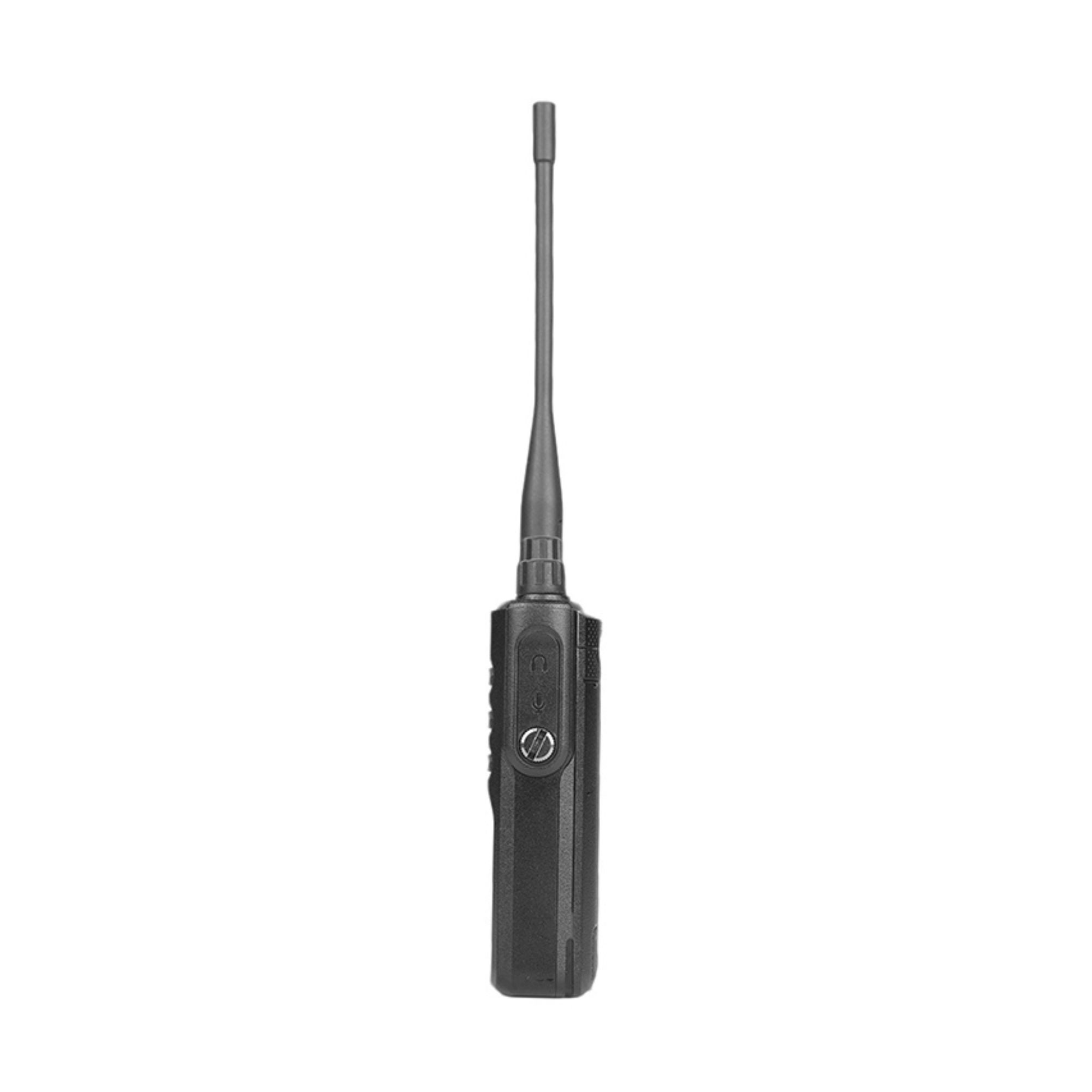

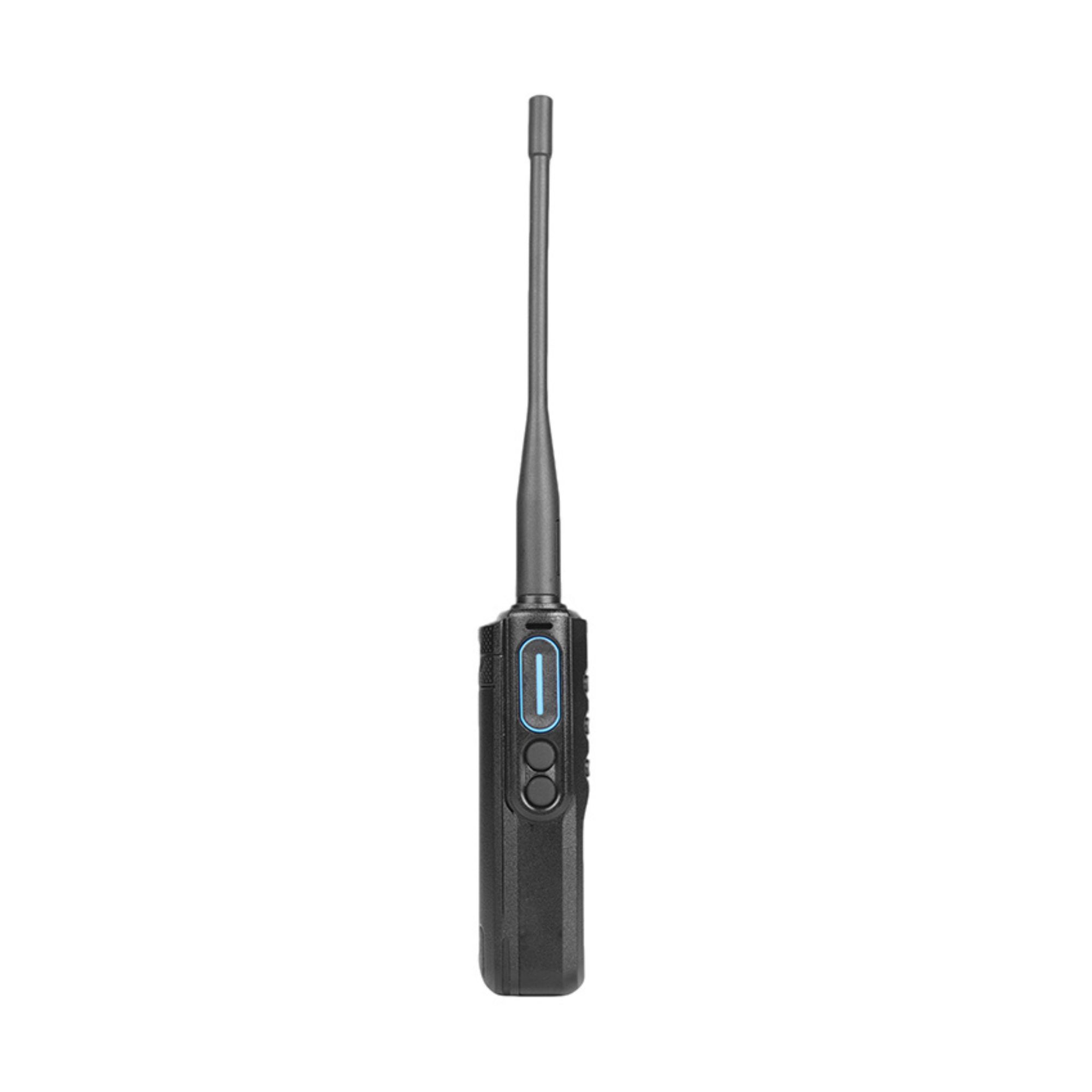

N-501 Walkie-Talkie

The N-501 is a durable, IP68-rated walkie-talkie designed for demanding industrial and outdoor environments. It features Active Noise Cancellation, ensuring clear voice communication even in high-noise areas such as construction sites, power plants, and factories.

Active Noise Cancellation
Hidden Display / Led Display
Type-C Charging
VOX Function
Channel Scan
Long Battery Life

NEXIO N501 Advanced Features

N-501 Walkie-Talkie – Rugged, Reliable & Built for Extreme Conditions

Communication Features

1

16 Analog Channels

2

Active Noise Cancellation (Tx & Rx)

3

Channel Scan

4

CTCSS / DCS

5

Squelch Level Selectable

6

Scrambler

Communication Features

Smart Functions

1

Hidden Shatter-Proof Display

2

Type-C Battery Charging

3

Time-Out Timer (TOT)

4

Battery Saver

5

Side Key Selection

6

VOX

Smart Functions

Durability & Performance

1

IP68 Certified

2

High & Low Temperature Certified

3

Damp Heat Certified

4

Industrial Grade Reliability

Durability & Performance

Standard Accessories

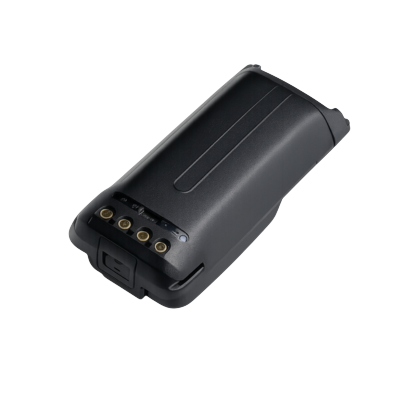

Battery

Battery

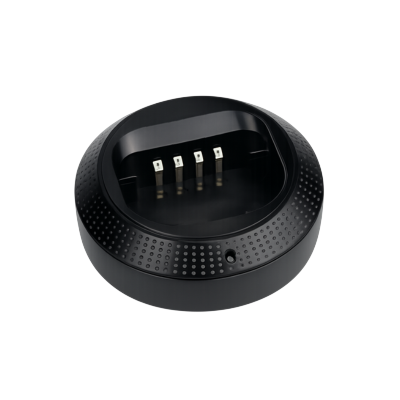

Charger Tray

Charger Tray

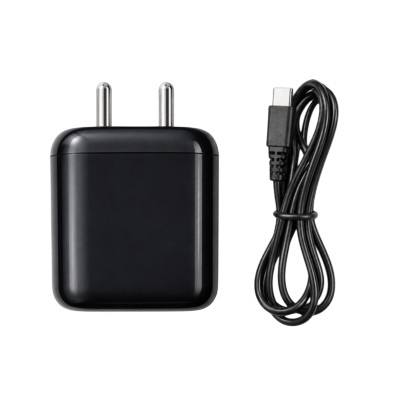

Charger & Cable

Charger & Cable

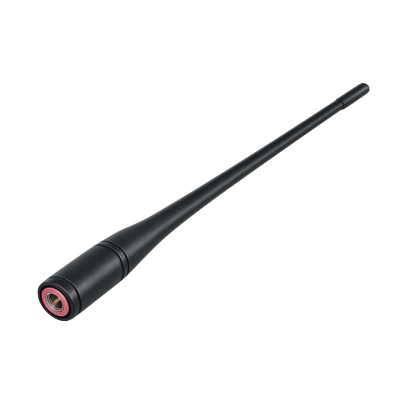

Antenna

Antenna

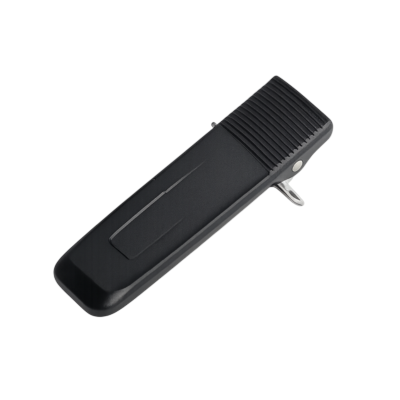

Belt Clip

Belt Clip

Specifications

Frequency Range 446 - 446.2 MHz
No. of Channels 16
Operating Voltage 7.4V
Working Temperature -30°C to +60°C
Storage Temperature -40°C to +85°C
Battery Chemistry Li-Ion
Battery Capacity 2600mAh
Weight 315gm (antenna & battery included)
Dimensions 139 × 62.8 × 40.5 mm
Channel Spacing 12.5KHz / 25KHz
Analog Sensitivity 0.18µV (-122dBm) @12dB SINAD
Intermodulation ≥60dB / ≥55dB
Spurious Response ≥60dB / ≥55dB
Adjacent Channel Selectivity ≥60dB / ≥55dB
Co-Channel Suppression ≥-8dB
Rated Audio Power 1 Watt
Audio Response +1dB ~ -3dB
Rated Audio Distortion ≤5%
Channel Spacing 12.5KHz / 25KHz
Frequency Stability 5 ppm
Tx Power 0.5 Watt
FM Noise ≥35dB
Adjacent Channel Power ≥-70dB / ≥-65dB
FM Modulation 16K0 F3E, 11K0 F3E
Modulation Limit 2.5KHz @12.5KHz
