NEXIO N515
NEXIO N515

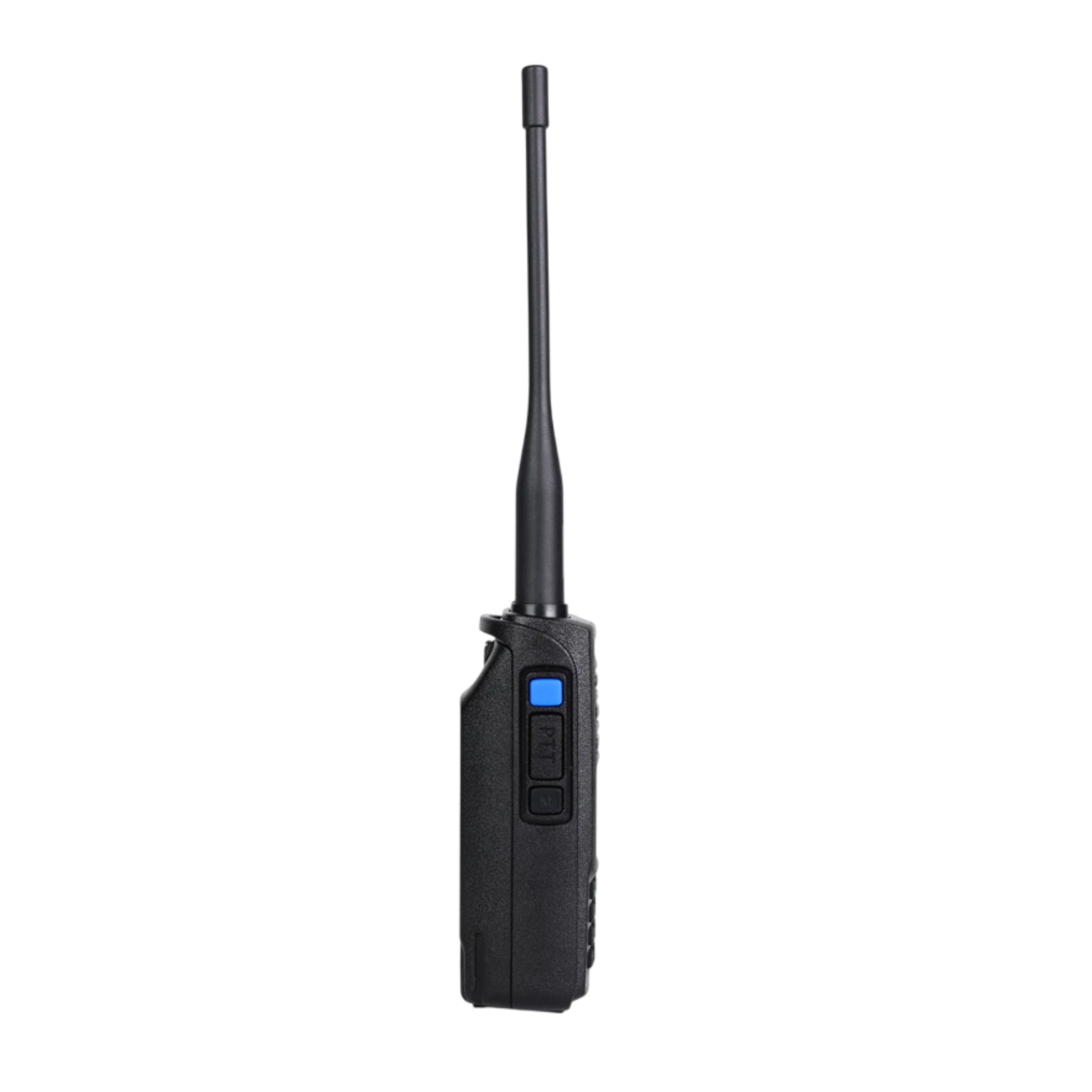

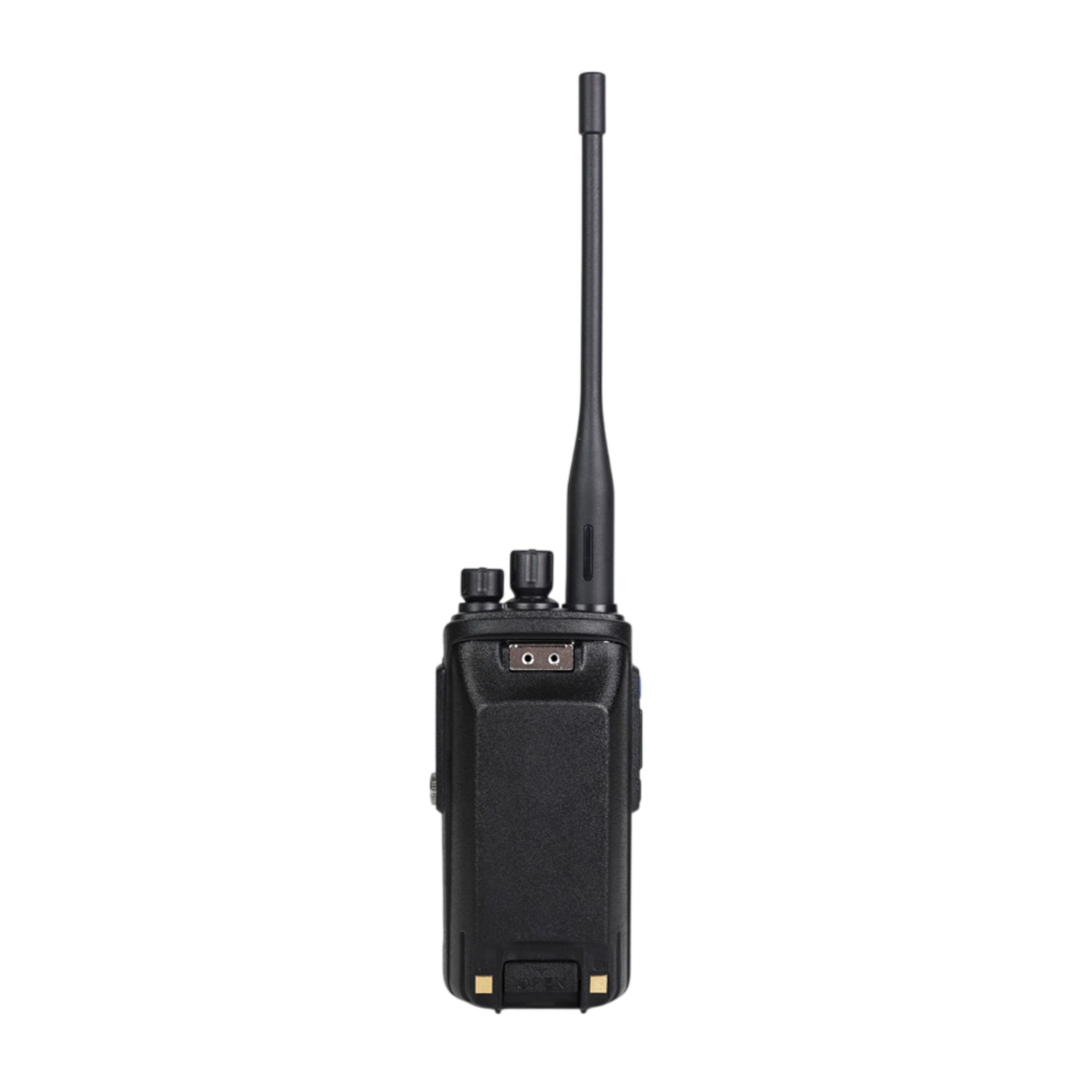

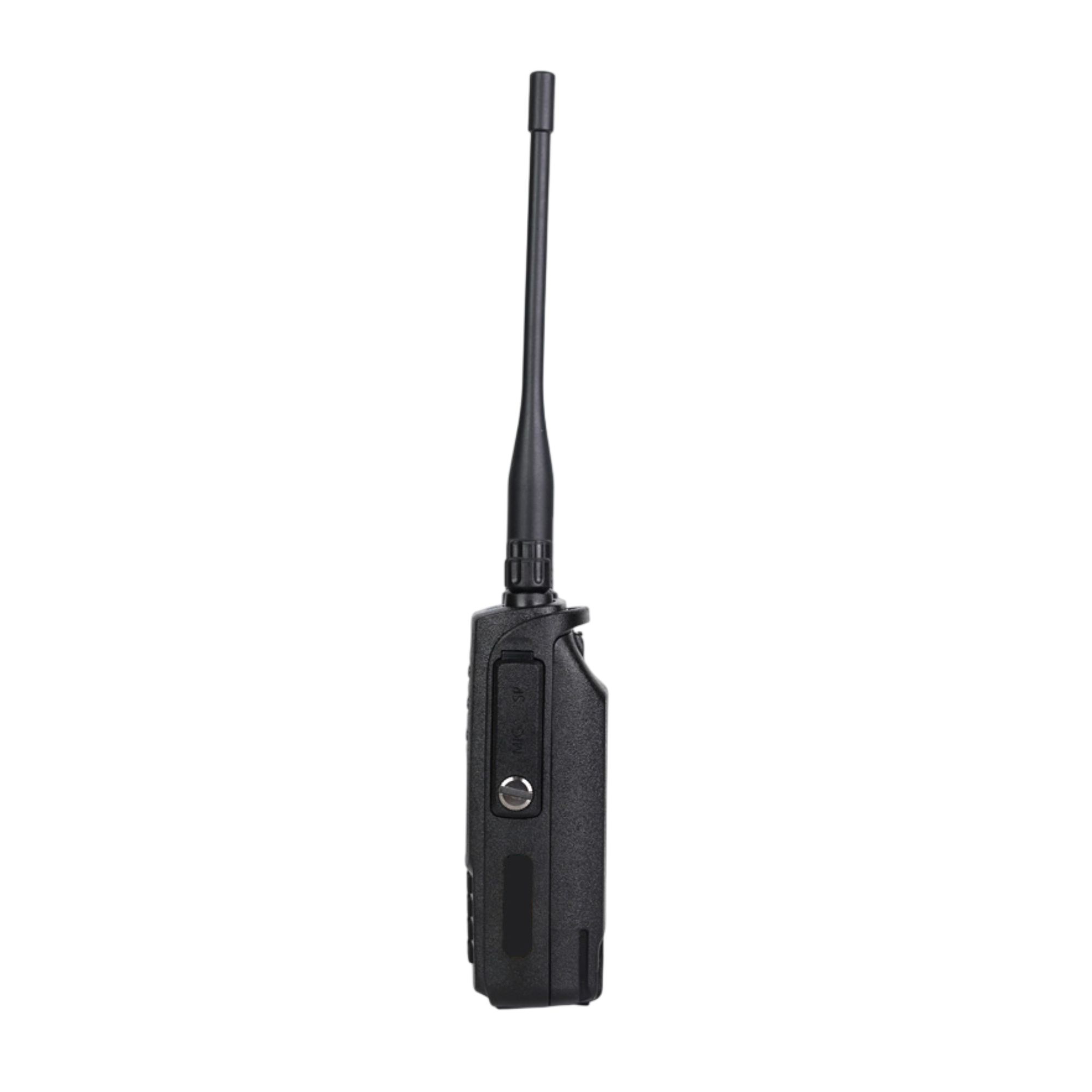

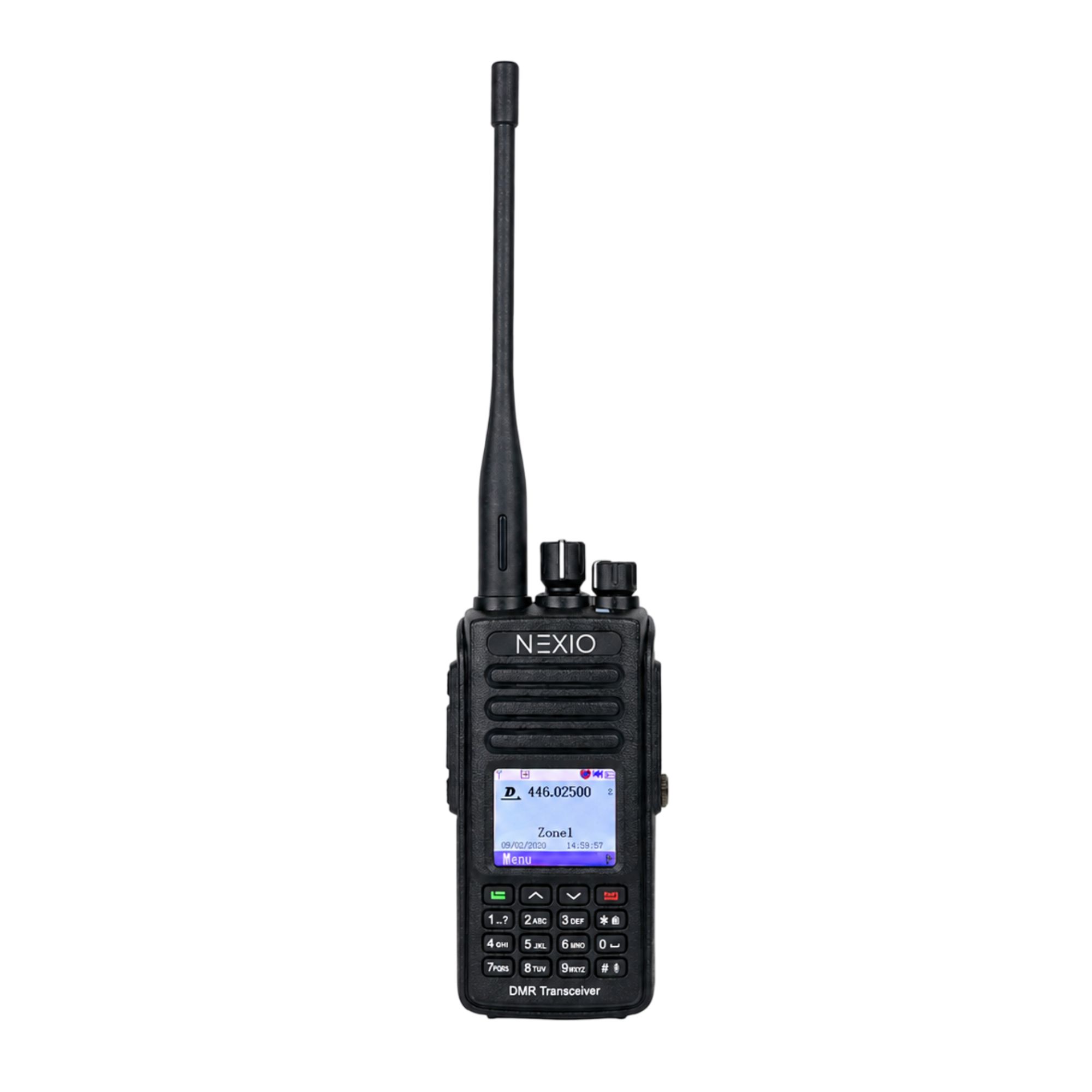

N515 Walkie-Talkie
DMR complied with fully supported TDMA. Large Coloured LCD Display and Full Keypad. IP67 Water & Dust Protection. Screen Lock with Password to prevent misuse. Compatible with every standard DMR Radio. High Capacity Cylindrical Cell Battery. Low ownership and usage cost.
Type-C Charger
Thin & Light Weight
Voice Prompt
VOX Function
Scan Function
NEXIO N515 Advanced Features
Nexio N515 walkie-talkie with LCD Display and full keypad
Professional Communication
1
DMR Digital Radio (TDMA Supported)
2
Colour LCD Display
3
Full Keypad Operation
4
Password Protection
Advanced Digital Features
1
Private, Group & All Call
2
Transmit Interrupt
3
Remote Kill, Stun & Activate
4
Firmware Upgradeable
Durability & Security
1
IP67 Water & Dust Resistant
2
ETSI TS 102 361-1, -2, -3 Complied
3
AMBE +2™ Vocoder Technology
4
Secure Digital Voice Communication
Standard Accessories

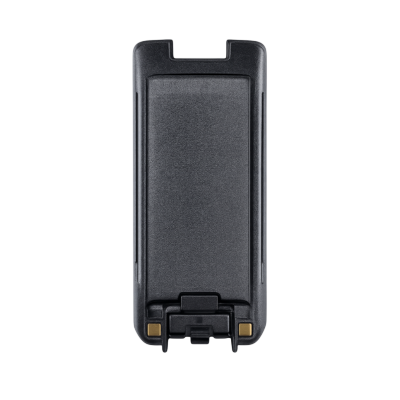

Battery

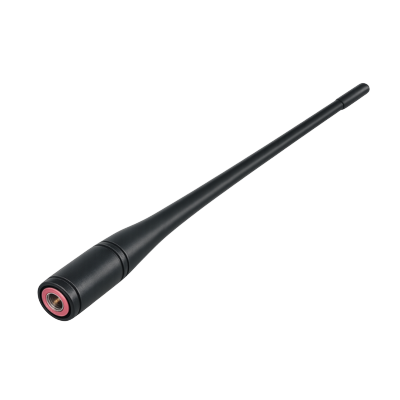

antenna

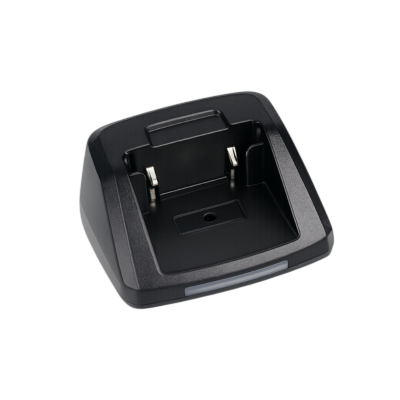

charging-tray

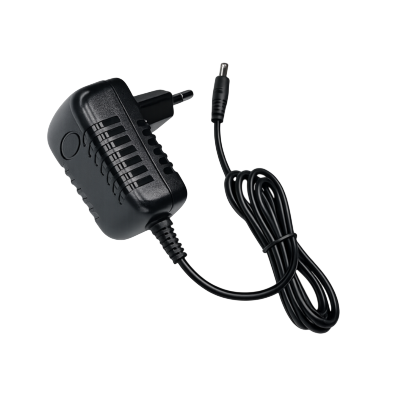

adapter

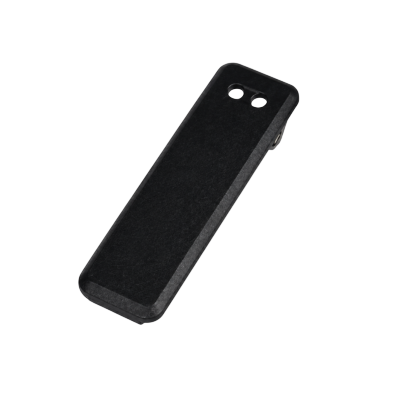

belt-clip
Specifications
Frequency Range
446 - 446.2 MHz
No. of Zones
2
No. of Channels
32
Operating Voltage
7.4V
Working Temperature
-30°C to +60°C
Storage Temperature
-40°C to +85°C
Battery Capacity
2600mAh
Weight
260 gm
Dimensions
131 × 61 × 36 mm
Channel Spacing
12.5KHz / 25KHz
Frequency Stability
±1.0 ppm
Analog Sensitivity
0.20µV @12dB SINAD
Digital Sensitivity
0.25µV @5% BER
Adjacent Channel Selectivity
≤60dB @12.5KHz / ≤65dB @25KHz
Spurious Response
>70dB
Rated Audio Power
1 Watt
Audio Response
+1dB ~ -3dB
Rated Audio Distortion
≤5%
Frequency Stability
±1 ppm
Tx Power
0.5 Watt
Adjacent Channel Power
≤60dB @12.5KHz
FM Modulation
12.5KHz: 11K0 F3E
4FSK Digital Modulation Mode
12.5KHz (Data only): 7K60 FXD 12.5KHz (Data & Voice): 7K60 FXW
FM Noise
≥40dB @12.5KHz ≥45dB @25KHz
Modulation Distortion
≤5%
Digital Protocol
ETSI TS 102 361-1, -2, -3
Vocoder Type
AMBE +2™
