NEXIO N240
NEXIO N240

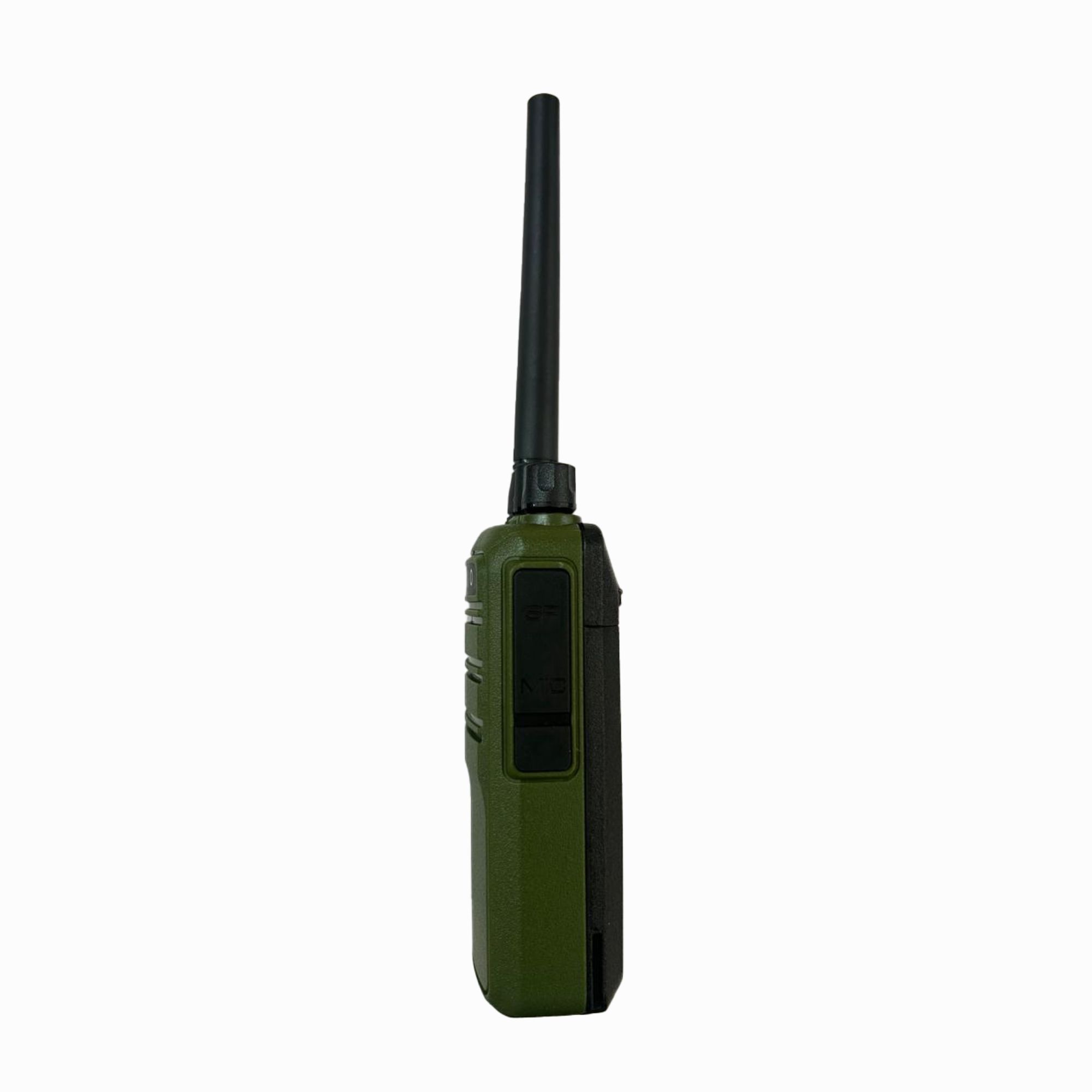

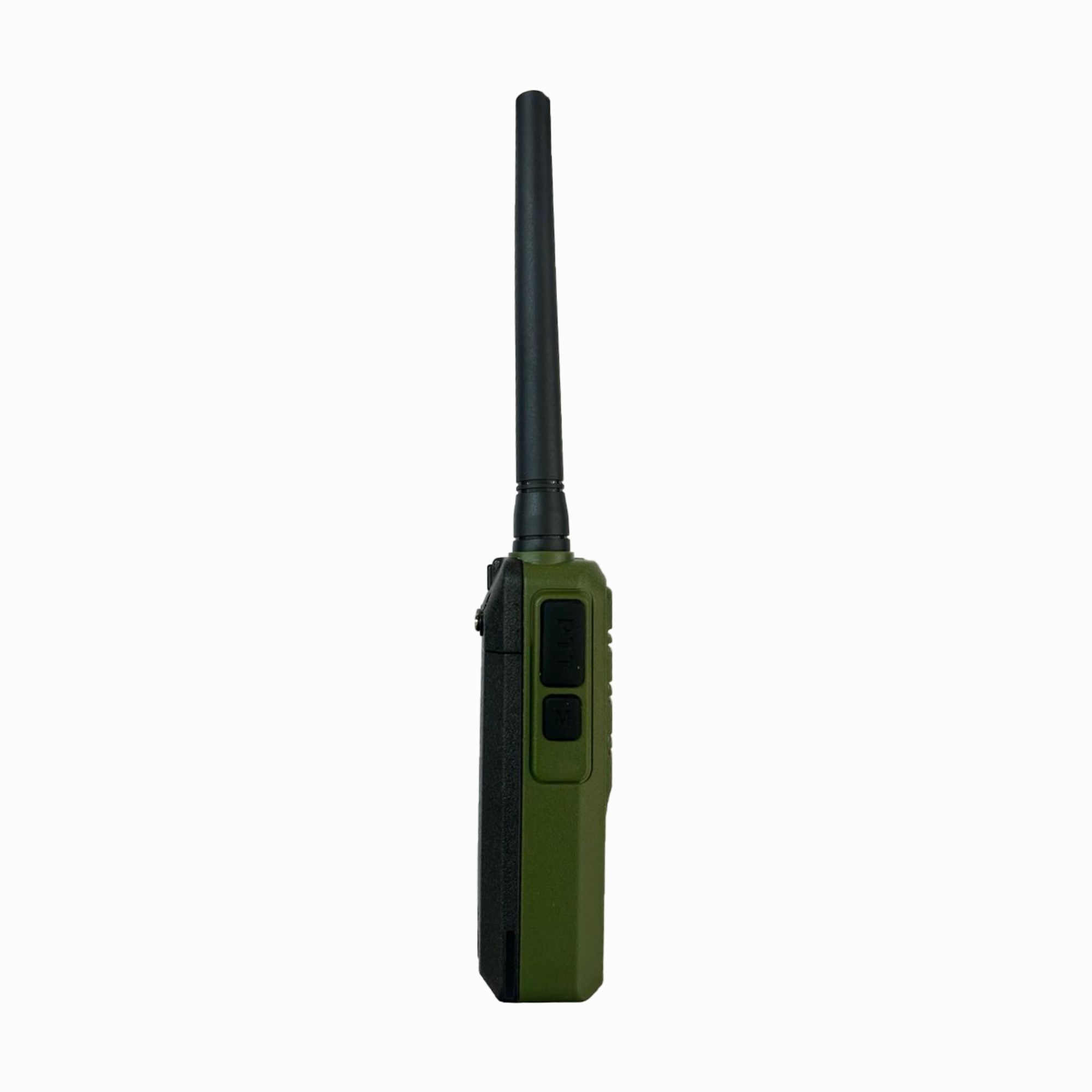

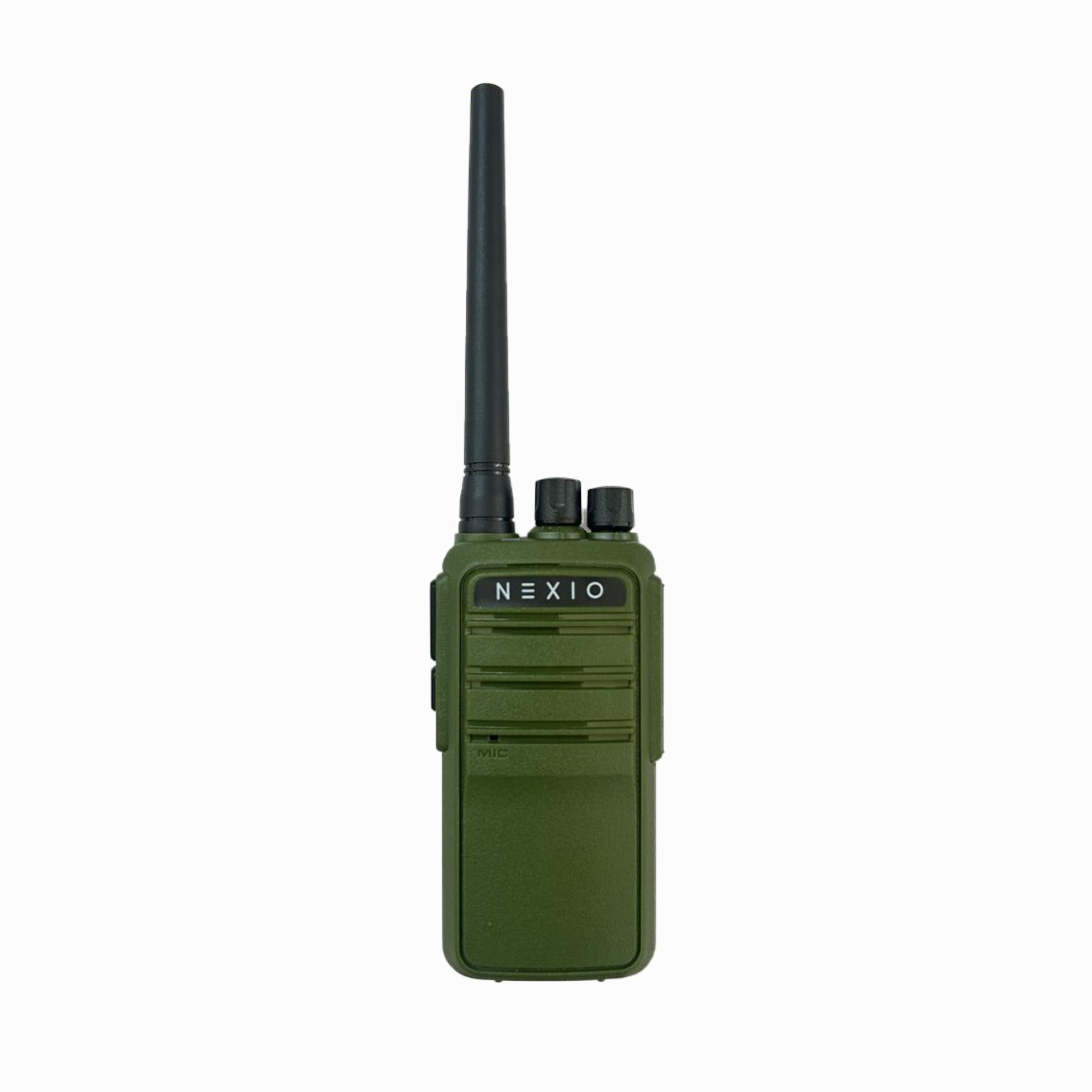

N240 Walkie-Talkie
N-240 is a professional-grade walkie-talkie with a rugged design, loud audio, and all required functions. Affordable and suitable for most applications, it is engineered for reliable communication in industrial workplaces.
Professional Transceiver
Rugged Design
Scan Function
VOX Function
Voice Prompt
CTCSS/DCS Encoding & Decoding
NEXIO N240 Advanced Features
Nexio N240 Walkie-Talkie
Communication Features
1
Professional Analog Communication
2
16 Analog Channels
3
CTCSS / DCS Encoding & Decoding
4
Channel Scan Function
Smart Functions
1
VOX Hands-Free Operation
2
Battery Saving Function
3
Voice Prompt
4
Busy Channel Lockout (BCL)
Performance & Reliability
1
High Capacity Li-Ion Battery
2
Clear & Loud Audio
3
Stable Signal Performance
4
Compact & Rugged Design
Standard Accessories

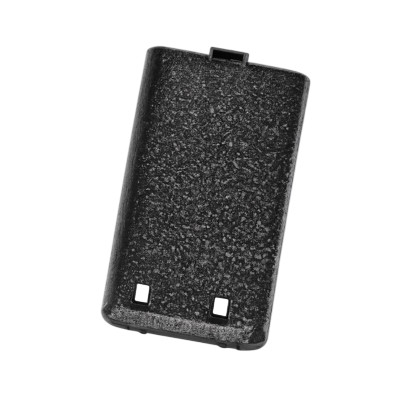

Battery

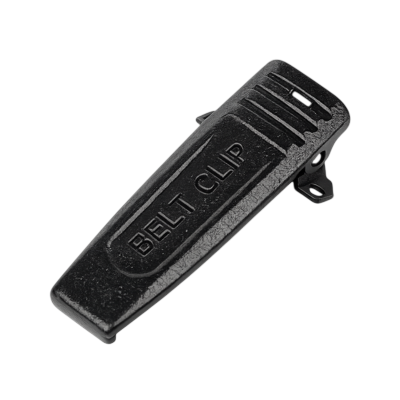

Belt Clip

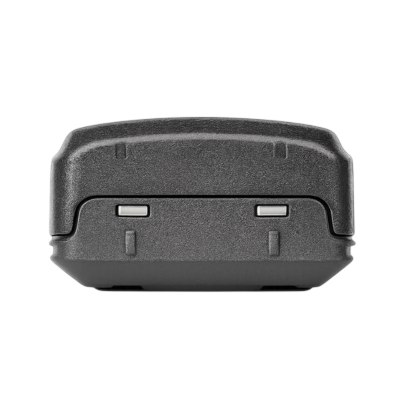

Bottom

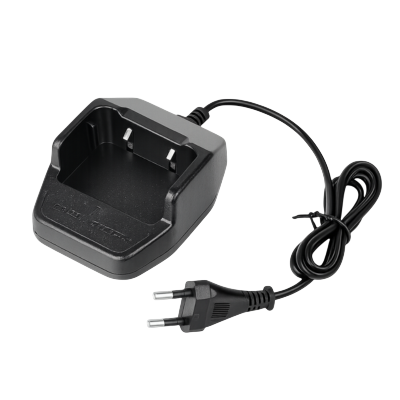

One Body Charger

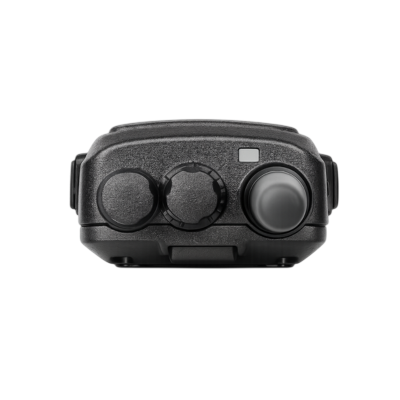

Top

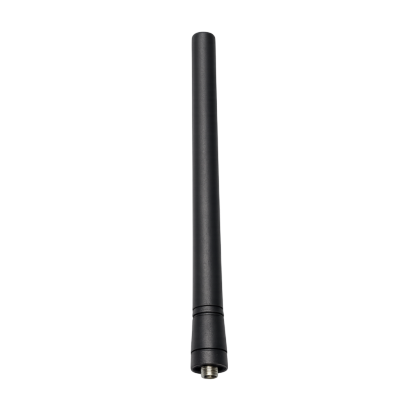

Antenna
Specifications
Frequency Range
446 - 446.2 MHz
No. of Channels
16
Operating Voltage
7.4V
Working Temperature
-20°C to +60°C
Storage Temperature
-40°C to +85°C
Battery Chemistry
Li-Ion
Battery Capacity
2600mAh
Weight
235 gm (Antenna & Battery included)
Dimensions
111.2 × 55.8 × 34 mm
Channel Spacing
12.5KHz / 25KHz
Analog Sensitivity
0.25µV
Adjacent Channel Selectivity
60dB
Intermodulation Response
60dB
Co-Channel Suppression
-8dB
Audio Response
+2dB ~ -10dB
Rated Audio Power
0.5 Watt
Rated Audio Distortion
≤5%
FM Noise
≥-40dB
RF Output Power
0.5 Watt
Frequency Stability
5 ppm
FM Modulation
16K0 F3E
FM Noise
≥35dB
Modulation Limiting
5KHz
Adjacent Channel Power
≥65dB
FM Noise
≥40dB
